Insulating Mats

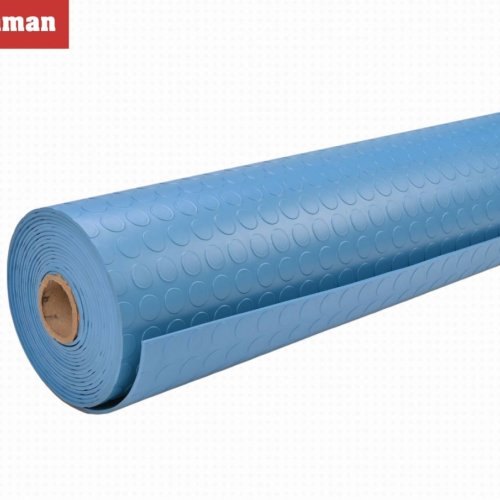

Leading Manufacturers, Exporters, Wholesaler and Retailer of Electrical Insulating Mat - ISI Marked IS:15652, Electrical Insulating Rubber Matting Iec/BS EN 61111:2009 and Insulation Matting ASTM-D-178 from Bhiwadi.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Thickness | 2mm,2.5mm,3mm |
| Form | Rolls or Mat |
| Length | 5M/10M/20M |
| Width | 3ft(900mm)1M |
| Color(*Other colors as per request) | RED/BLACK/BLUE/GREY |
Our Features:
- ISI Marked, ERDA & CPRI Type Tested insulating mats.
- Tests and specifications also meet BS 921, IEC 61111, ASTM.
- For both A.C. and D.C. applications.
- Di-electric Strength 65000 Volts.
- AC proof Voltage up to 36KV.
- Low Temperature resistant.
- Acid, Alkali, Diesel & Transformer oil resistant.
- Flame Retardant.
- Good Aging properties
- High Insulation resistance exceeding 1100000 MΩ.
- High tensile strength and elongation properties.
- Leakage Current less then 1mA.
Specification are subject to change without prior notice.
- Mats shall be ISI Marked at every meter with unique CM/L No.
- Mats shall be Type Tested by ERDA.
- Mats shall be pastable type. Pasting / Fixing or request.
- Inspection facilities are available.
- In-house test certificate along with supply
- Mats shall be replaced on first sign of any damage.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Width | 0.9mtr, 1.0mtr, 1.2mtr |
| Length | 2mtr, 5mtr, 10mtr, 20mtr, or as per requirement |
| Thickness | As Per Specified Class |
| Color(*Other colors as per request) | BLACK/BLUE/GREY |
| Surface/Design | Anti-Skid Texture Finish |
| Composition and Surface | Rubber elastomer*, Anti Skid Finish. Macromolecular material which returns rapidly to its final dim |
| Workmanship | Mats shall be free from Harmful physical irregularities. |
| Mechanical Puncture Resistance | Min. 70N |
| Slip Resistance Test @ force of 70N | Maximum 15mm |
| Ageing Test at 70°C / 168 hrs. | Puncture Resistance shall be min. 80% of original value. |
| Flame Retardant Test | Flame shall not reach any point on a 50mm circle. |
| Thermal Test (Low Temp. Test) | No Crack @ 100N. No Breakdown on specified voltage. |
| Acid Test; H2SO4 for 8 hrs. Minimum Retention in Mech. Puncture Test initial value. | Min. 75% Retention & No Breakdown on specified Voltage. |
| Oil Test; oil for 2 hrs. Minimum Retention in Mech. Puncture Test initial value. | Min. 75% Retention & No Breakdown on specified Voltage. |
Vardhman Insulating Matting (Di-Electric Carpets) made of Rubber Compound suitable for providing the Electrical safety to the workmen working around the possible areas of Electrical shock and act as a safeguard equipment from electrical shock due to leakage of current, shot circuit or any other.
Electrical Rubber Matting manufactured by Vardhman conforms to IEC 61111 and comes with a double triangle logo. The special high quality Rubber Compound ensures the complete shock protection against electrical shocks due to electrical earth faults.
Our Mats are fully compliant With IEC 61111 (International Electro Technical Commission) and are regularly tested by third like TUV, Lloyds and many others. The mats offered by us are ROHS and PAH Compliant.
We at Vardhman, adopt the most advance technology to manufacture Insulating Mats. The state of the art line (German Technology) makes our quality and finish unmatchable in the industry.
All the testing and inspection facilities are established within the factory Which ensures every square inches of mat are fully tested to the specifications.
Application
The Mat can be used in Indoor and outdoor locations and are mostly used in front and rear side side of electrical panels, switchgears, transformers and other high voltage workplaces to provide the high safety environment for the workforce.
This mat can also be used as portable protection for site engineers working on live equipment.
Features and Advantages:
Fully tested to specification IEC 61111.
Provides safety for operators against electrical shock.
High Electrical Resistance Up to 50 KV/50000 volts.
Suitable for both AC and DC Applications.
Health and safety regulation Halogen Free flame retardant material.
Highly Flexible mats with self-gripping design on floor.
Anti-Fatigue type. Comfortable while standing for long period.
Anti-Slip Finish. Tested to slip resist test.
Resistant to acid, oil and Low temperature test.
Ozone, UV and weather resistant.
Permanent Marking-Durable and un-erasable done while curing of mats.
Fully Traceable supply.
Low Maintainance.
No Recycled Rubber.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Color | Black/ Dark Grey |
| Thickness | 3mm, 5mm, 6mm, 8mm, 10mm |
| Width | 0.9m, 1.0m, 1.2m, 1.5m |
| Length | 2m, 5m, 10m, 20m (Custom lengths available) |
| Surface Finish | Anti slip textured, Fine rib finish |
Note: Custom sizes and specifications can be manufactured according to specific requirements. Contact us for special orders.
Vardhman Insulation Matting ASTM-D-178 is a premium grade electrical insulating material designed specifically for high voltage protection applications. These mats provide essential electrical safety for personnel working in environments with potential electrical hazards.
Our ASTM-D-178 compliant insulation matting is manufactured using advanced rubber compounding technology, ensuring superior dielectric properties and long-term reliability. These mats are essential safety equipment for electrical maintenance, testing, and live working operations.
Vardhman's Insulation Matting meets the rigorous ASTM D-178 standard specifications for electrical insulating materials, providing reliable protection against electrical shocks and ensuring workplace safety in high voltage environments.
With over 25 years of experience in electrical safety equipment manufacturing, Vardhman ensures that every piece of ASTM-D-178 insulation matting undergoes comprehensive testing to meet international safety standards.
Applications
ASTM-D-178 Insulation Matting is primarily used in electrical substations, power plants, industrial facilities, and commercial buildings where electrical equipment maintenance and operation require enhanced safety measures.
These mats are essential for protecting workers during electrical testing, maintenance procedures, and live working operations where direct contact with energized equipment may occur.
Features and Benefits
Compliant with ASTM D-178 standard specifications
Superior dielectric strength and electrical resistance
Excellent mechanical properties and durability
Resistant to moisture, oil, and chemical exposure
Anti-slip surface for enhanced safety
UV and ozone resistant for outdoor applications
Flame retardant properties
Low maintenance and long service life
Available in various thicknesses and sizes
Easy to clean and maintain
Environmentally friendly materials
Cost-effective electrical safety solution
