| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Thickness | 2mm,2.5mm,3mm |
| Form | Rolls or Mat |
| Length | 5M/10M/20M |
| Click to view more | |
Product Details
Width
3ft(900mm)1M
Color(*Other colors as per request)
RED/BLACK/BLUE/GREY
Our Features:
- ISI Marked, ERDA & CPRI Type Tested insulating mats.
- Tests and specifications also meet BS 921, IEC 61111, ASTM.
- For both A.C. and D.C. applications.
- Di-electric Strength 65000 Volts.
- AC proof Voltage up to 36KV.
- Low Temperature resistant.
- Acid, Alkali, Diesel & Transformer oil resistant.
- Flame Retardant.
- Good Aging properties
- High Insulation resistance exceeding 1100000 MΩ.
- High tensile strength and elongation properties.
- Leakage Current less then 1mA.
Specification are subject to change without prior notice.
Note:
- Mats shall be ISI Marked at every meter with unique CM/L No.
- Mats shall be Type Tested by ERDA.
- Mats shall be pastable type. Pasting / Fixing or request.
- Inspection facilities are available.
- In-house test certificate along with supply
- Mats shall be replaced on first sign of any damage.

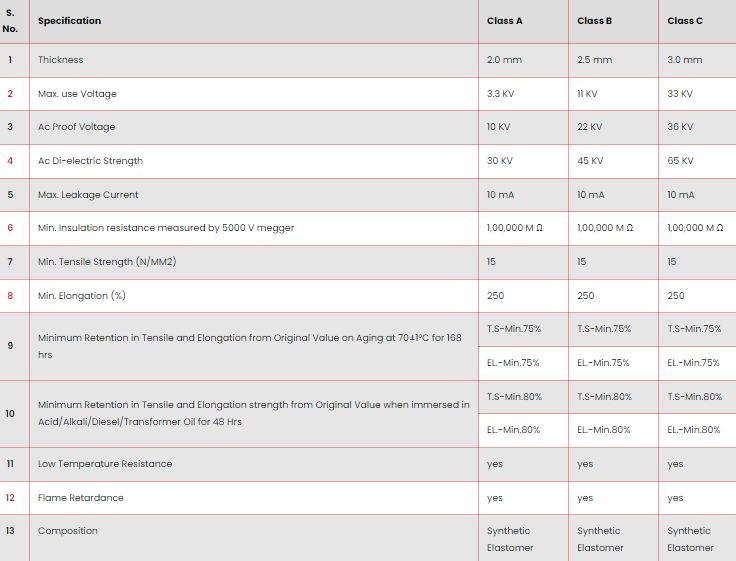

Techincal Specification

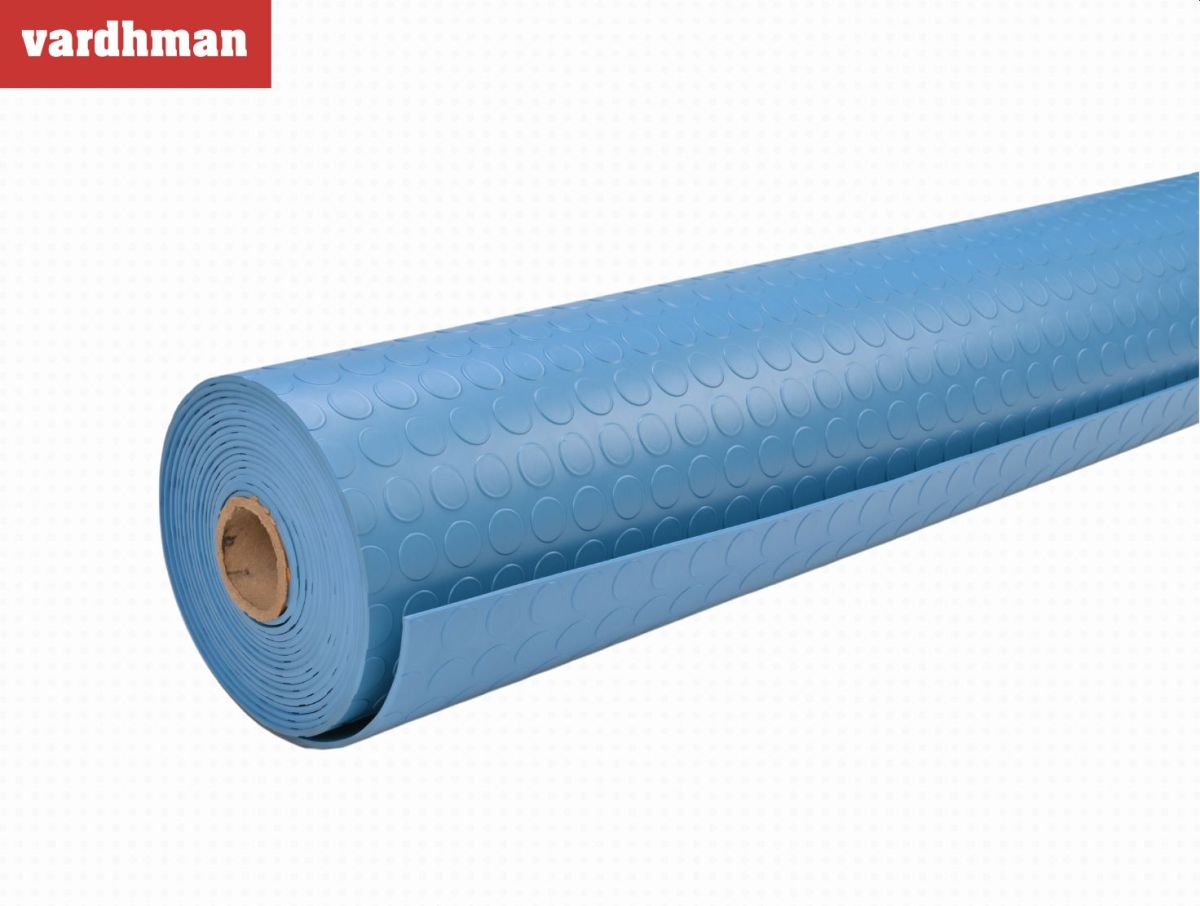

Looking for "Electrical Insulating Mat - ISI Marked IS:15652" ?
